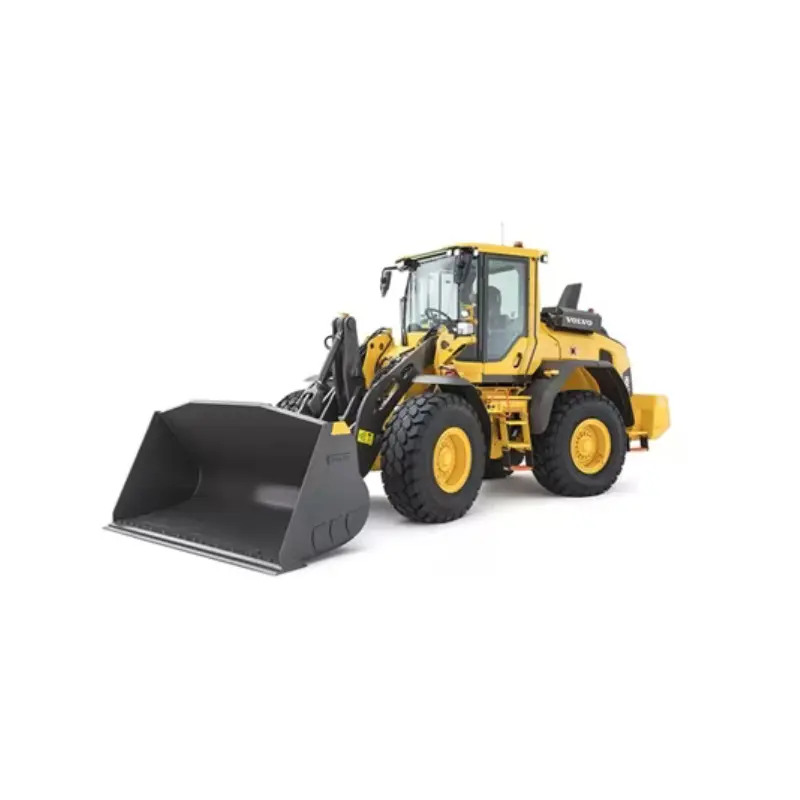

volvo L90H Wheel Loader

volvo L90H

Wheel Loader

Powerful and Efficient Wheel Loader

The Volvo L90H Wheel Loader is a versatile machine designed for construction, quarrying, agriculture, landscaping, infrastructure, and general material-handling applications. It combines a strong frame, reliable Volvo drivetrain, efficient performance, and smart technology to help operators complete demanding jobs with greater productivity.

With an operating weight of 14,500 to 17,300 kg, the L90H provides a stable platform for lifting and transporting materials while maintaining the flexibility needed for different job sites.

Built for Long-Lasting Performance

The L90H is part of Volvo’s H-Series wheel loader range, which is designed around durability and dependable performance. Its strong frame works together with a matched Volvo drivetrain to handle demanding daily operations.

This robust construction helps the machine maintain reliable performance during long working hours and challenging material-handling tasks.

Flexible Bucket Capacity

The Volvo L90H supports bucket capacities from 2.2 to 7 m³, giving operators flexibility for different materials and applications.

The bucket can be used for handling soil, sand, gravel, aggregates, crushed stone, mulch, and other bulk materials. Selecting the right bucket configuration helps optimize loading cycles and improve overall productivity.

Strong 140 kN Breakout Force

The L90H delivers a 140 kN breakout force, providing the power needed to penetrate, lift, and load demanding materials.

Strong breakout force is especially useful when working with compacted soil, gravel, aggregates, and other dense materials. It helps operators fill the bucket efficiently while maintaining controlled machine operation.

Volvo D6J Engine

The Volvo L90H is powered by the Volvo D6J engine, designed to deliver dependable power and efficient performance.

The engine produces 137 kW of net power according to ISO 9249 and SAE J1349, with maximum power available between 1,400 and 1,900 rpm. Maximum torque reaches 934 Nm at 1,400 rpm.

This power output provides the performance required for loading, carrying, and transporting materials across demanding work sites.

Stable Performance During Loading

The L90H has a static tipping load at full turn of 10,100 kg, providing stability when lifting and handling heavy loads.

Its operating weight of 14,500–17,300 kg creates a strong and stable platform for material handling. Correct configuration and safe operating practices are important for maintaining stability and efficient performance.

Efficient Material Handling

The Volvo L90H is designed to make repetitive loading operations more productive. Its combination of bucket capacity, breakout force, engine power, and stable chassis allows operators to move materials efficiently.

The loader can be used for truck loading, stockpile management, earthmoving, site preparation, and general material transport.

Ideal for Construction Projects

Construction companies can use the L90H for a wide range of applications, including loading aggregates, moving soil, handling construction materials, and preparing work sites.

Its flexible bucket range allows the machine to be configured according to project requirements, making it suitable for both general construction and infrastructure work.

Reliable Performance for Quarrying

Quarry and aggregate operations require durable machines capable of moving heavy materials continuously. The L90H provides the strength and bucket capacity needed for many quarry applications.

It can handle gravel, sand, crushed stone, and processed aggregates while maintaining efficient loading cycles.

Smart Technology for Better Efficiency

The L90H can be equipped with a range of smart applications designed to help operators improve efficiency from inside the cab.

These tools can provide useful operational information and support better machine utilization. Better control over loading activities can help reduce unnecessary work and improve productivity.

Operator-Friendly Working Environment

The L90H is designed to make demanding work easier for operators. Smart applications can be accessed from the cab, helping operators monitor and manage machine operations more effectively.

An intuitive working environment can reduce unnecessary operator effort and help maintain consistent performance throughout long shifts.

Suitable for Logging Applications

The L90H supports log grapple capacities from 1.3 to 2.4 m², providing additional flexibility for timber and logging applications.

With the correct attachment, the machine can handle logs and other forestry materials efficiently. This makes the L90H suitable for businesses that need one machine for multiple material-handling tasks.

Strong Frame for Demanding Jobs

A strong machine frame is essential when working with heavy materials. The L90H’s robust frame is designed to withstand demanding working conditions while providing the durability required for professional applications.

Combined with Volvo’s matched drivetrain, the machine is built to deliver consistent performance over extended operating periods.

Flexible Tire Options

The Volvo L90H is available with 20.5 R25 and 650/65 R25 tire configurations.

The correct tire selection depends on the machine setup and working environment. Suitable tires can improve traction, stability, and overall performance on different surfaces.

Suitable for Multiple Industries

The versatility of the Volvo L90H makes it suitable for a wide range of applications, including:

• Construction
• Quarrying
• Agriculture
• Landscaping
• Logging
• Infrastructure projects
• Aggregate handling
• Road construction
• Industrial material handling
• Property maintenance

This flexibility allows businesses to use one reliable wheel loader for different daily tasks.

Designed for Efficient Operations

The L90H combines strong mechanical performance with smart technology to help businesses improve productivity. Its bucket capacity, breakout force, stable design, and reliable drivetrain support efficient loading and transport operations.

Moving more material per cycle can help reduce unnecessary machine movements and make better use of operating hours.

Why Choose the Volvo L90H Wheel Loader?

The Volvo L90H Wheel Loader combines a 2.2–7 m³ bucket capacity, 140 kN breakout force, 14,500–17,300 kg operating weight, and a reliable Volvo D6J engine.

Its strong frame, matched Volvo drivetrain, flexible attachments, and smart applications make it an excellent choice for construction companies, quarry operators, agricultural businesses, landscapers, logging operations, and industrial facilities.
