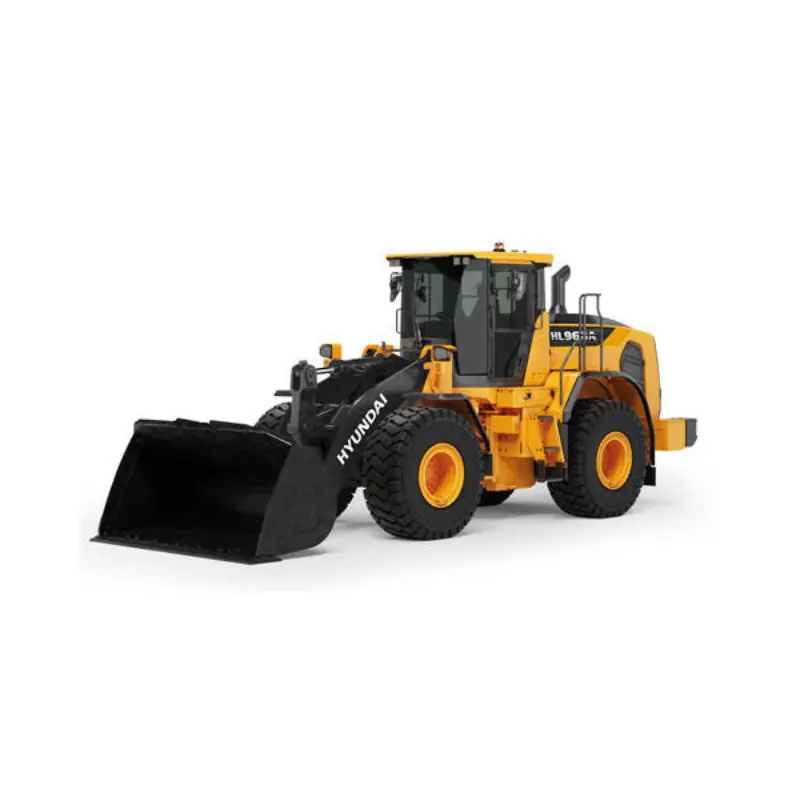

Hyundai HL960A Wheel Loader

Hyundai HL960A

Wheel Loader

The Hyundai HL960A Wheel Loader is a heavy-duty construction machine manufactured since 2019 for material handling, construction, quarrying, aggregate, and industrial applications. With an operating weight of 19.2 tons, the HL960A is designed to provide a practical balance between loading capacity, stability, mobility, and transport dimensions. Its combination of a large bucket, high discharge height, and 40 km/h travel speed makes it suitable for demanding daily operations where efficient material movement is important.

High-Productivity Material Handling

The Hyundai HL960A has a bucket capacity ranging from 3.2 to 3.3 cubic meters, allowing operators to move substantial quantities of material during each loading cycle. This capacity is suitable for handling common bulk materials such as sand, gravel, soil, crushed stone, and aggregates. The available bucket range also gives operators flexibility when selecting a configuration for different working conditions.

2.9 Meter Bucket Width

The HL960A features a 2.9-meter bucket width, providing a wide loading area for moving bulk materials. The bucket size is designed to support efficient loading while maintaining practical machine dimensions. This makes the wheel loader useful for loading trucks, moving material around construction sites, and managing stockpiles in aggregate and industrial facilities.

Maximum Discharge Height

The Hyundai HL960A provides a maximum discharge height of 4.105 meters. This height allows the machine to load materials into high-sided trucks and transfer materials into elevated areas. A high discharge height is especially useful in quarrying, aggregate handling, construction, recycling, and other applications where materials need to be placed above ground level.

40 km/h Travel Speed

The Hyundai HL960A can reach a maximum travel speed of 40 km/h, giving it the mobility needed to move efficiently around large work sites. The loader can travel between stockpiles, loading areas, trucks, and other working locations without requiring frequent relocation by transport equipment. Its travel speed makes it suitable for operations involving repeated movement around the job site.

19.2 Ton Operating Weight

With an operating weight of 19.2 tons, the Hyundai HL960A provides a stable platform for material handling. The machine’s weight supports its ability to work with large bucket loads while maintaining stability during loading and transportation operations. This makes the HL960A suitable for construction and industrial environments where the loader is expected to handle materials throughout the working day.

Transport Dimensions

The Hyundai HL960A has a transport length of 8.14 meters, a transport width of 2.9 meters, and a transport height of 3.45 meters. These dimensions are important when planning transportation between job sites. Contractors and equipment owners can use these measurements to select appropriate transport equipment and plan site entrances, access roads, storage areas, and loading zones.

Outside Turning Radius

The HL960A has an outside turning radius of 6.03 meters, providing useful information for site planning and maneuvering. Operators need sufficient working space when turning the loader around stockpiles, loading trucks, or working alongside other machines. Understanding the turning radius can help companies organize work areas more efficiently.

Flexible Bucket Capacity

The bucket capacity of the Hyundai HL960A ranges from 3.2 m³ to 3.3 m³. This relatively narrow capacity range provides options for matching the machine to specific loading requirements while maintaining the loader’s overall working characteristics. Choosing the correct bucket can help operators achieve better loading performance according to the type and density of material being handled.

Hyundai HL960A for Construction

The Hyundai HL960A is suitable for many construction applications involving the movement of bulk materials. Operators can use the machine to move soil, sand, gravel, crushed stone, and other materials around large construction sites. Its 3.2–3.3 m³ bucket capacity allows it to handle significant quantities in each cycle, while the 4.105-meter discharge height supports efficient truck loading.

Hyundai HL960A for Quarry and Aggregate Work

Quarries and aggregate facilities require wheel loaders capable of handling heavy materials repeatedly. The HL960A provides a 3.2–3.3 m³ bucket, 2.9-meter bucket width, and 4.105-meter maximum discharge height, making it suitable for loading and moving aggregates. Its 19.2-ton operating weight provides the stability needed for regular material handling operations.

Industrial Material Handling

The Hyundai HL960A can also be used in industrial yards and material processing facilities where bulk materials need to be moved frequently. Its combination of bucket capacity, travel speed, and maneuverability allows it to transport materials between stockpiles, processing areas, and loading points. The 6.03-meter outside turning radius also provides useful information when planning operating areas.

Air Conditioning for Operator Comfort

The Hyundai HL960A is equipped with air conditioning, helping maintain a more comfortable cabin environment during operation. This is particularly useful for machines working long shifts in hot or demanding conditions. Operator comfort is an important consideration when a wheel loader is used continuously for material handling and loading operations.

Diesel Particulate Filter

The HL960A is also equipped with a diesel particulate filter (DPF). This emissions-control component is designed to capture particulate matter from diesel engine exhaust. The DPF is an important feature for modern diesel-powered construction equipment operating in markets and work environments where emissions-control requirements apply.

Efficient Loading Operations

The Hyundai HL960A is designed to provide efficient material movement through a combination of bucket capacity and machine mobility. Its 3.2–3.3 m³ bucket allows operators to move a large volume of material with each cycle, while the 40 km/h travel speed supports efficient movement between different working areas. These characteristics make the machine suitable for projects where productivity and consistent material handling are important.

Practical Machine Size

The HL960A provides substantial loading capability while maintaining practical transport dimensions. Its 8.14-meter transport length, 2.9-meter transport width, and 3.45-meter transport height make it possible to plan transportation requirements before moving the machine between locations. These dimensions are especially important for contractors managing multiple job sites.

Hyundai HL960A Key Specifications

The Hyundai HL960A has an operating weight of 19.2 tons and a transport length of 8.14 meters. Its bucket capacity ranges from 3.2 to 3.3 m³, with a 2.9-meter bucket width and a 4.105-meter maximum discharge height. The machine has a maximum travel speed of 40 km/h, a transport width of 2.9 meters, and a transport height of 3.45 meters. Its outside turning radius is 6.03 meters. Special equipment includes air conditioning and a diesel particulate filter.

Suitable for Demanding Work

The Hyundai HL960A is designed for businesses that require a capable wheel loader for regular material handling. Its operating weight, bucket capacity, discharge height, and travel speed provide a useful combination for construction, quarry, aggregate, and industrial applications. The machine can handle common bulk materials while providing the mobility needed to move around large work areas.

Conclusion

The Hyundai HL960A Wheel Loader is a versatile heavy-duty machine manufactured since 2019 for construction, quarrying, aggregate handling, and industrial applications. With a 19.2-ton operating weight, 3.2–3.3 m³ bucket capacity, 2.9-meter bucket width, and 4.105-meter maximum discharge height, it provides the capacity required for demanding loading tasks. Its 40 km/h travel speed, 6.03-meter turning radius, practical transport dimensions, air conditioning, and diesel particulate filter make the HL960A a practical choice for efficient material handling operations.
