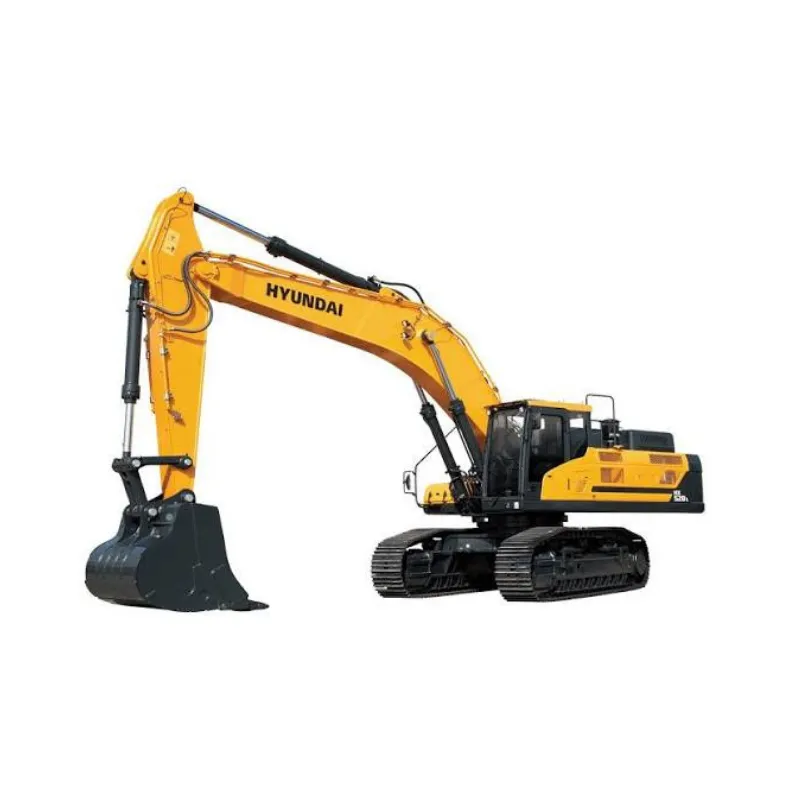

Hyundai HX520L Crawler Mining Excavator

Hyundai HX520L

Crawler Mining Excavator

Exceptional Performance with a Robust Engine

 Hyundai HX520L is equipped with a high-performance electronic diesel engine delivering 335 HP at 2,100 rpm. This engine is designed for maximum fuel efficiency and reliable performance even in the most demanding mining conditions. The electronically controlled engine ensures faster response at low RPMs, reduces fuel consumption, and provides a higher power-to-weight ratio, making it ideal for large-scale operations like coal, iron ore, and limestone mining.

Heavy-Duty Structure for Long-Lasting Durability

Built to withstand tough mining environments, the HX520L features a reinforced heavy-duty undercarriage and structures. This ensures superior durability and stability during operation. The machine’s strong frame minimizes wear and tear, reduces maintenance needs, and guarantees long-term performance, even under heavy loads and continuous operation.

Advanced Hydraulics for Maximum Efficiency

The HX520L incorporates fuel-efficient, high-performance hydraulics capable of delivering 810 L/min pump flow. Its implement pressure of 330 kgf/cm² and power boost up to 360 kgf/cm² enable powerful digging, lifting, and loading. The precise hydraulic system provides smooth and fast control, improving productivity and reducing operator fatigue during long working hours.

Optimized Bucket and Arm Performance

This excavator comes with a bucket capacity of 3.2 m³ (GP), 2.79 m³ (HD), and 2.43 m³ (RB), combined with impressive digging and crowd forces. The bucket digging force reaches 28,500 kgf (normal) and 31,090 kgf (power boost), while the arm crowd force achieves 25,100 kgf (normal) and 27,380 kgf (power boost). These forces allow the HX520L to handle heavy mining material efficiently, minimizing cycle times and maximizing productivity.

Smooth and Fast Travel Performance

The HX520L provides excellent mobility with a travel speed of 3.4 km/h in low gear and 5.5 km/h in high gear. Its swing speed of 8.8 rpm ensures smooth rotation for accurate digging and loading. The excavator’s drawbar pull of 39,674 kgf and ground pressure of 0.87 kgf/cm² allow safe and stable operation on challenging terrain, including loose soil and uneven surfaces.

User-Friendly Cabin for Comfort and Convenience

Operator comfort is a priority in the HX520L. The machine comes with a premium HX Series cabin featuring deluxe seating, air conditioning, and an 8-inch touchscreen display. The touchscreen centralizes controls, making machine operation simple and efficient. Integrated audio and climate control ensure a comfortable environment, allowing operators to focus on productivity for long hours without fatigue.

Smart Technology and Remote Management

The HX520L is equipped with Hyundai Hi-Mate, a remote management system that allows operators and fleet managers to monitor machine performance, access diagnostics, and track location remotely. This technology helps reduce downtime, plan maintenance, and improve operational efficiency. Remote monitoring is a vital feature for modern mining operations seeking precise control over resources.

Variable Power Control for Different Applications

The excavator offers three operating modes to optimize performance for different work conditions:

• Power mode (P): Heavy-duty operations requiring maximum digging force.
• Standard mode (S): Balanced performance with fuel efficiency.
• Economy mode (E): Maximum fuel savings for lighter tasks.
  This flexibility ensures that the HX520L delivers consistent performance while minimizing operating costs.

Safety Features for Operator Protection

The HX520L comes with multiple safety enhancements including a strong reinforced cabin, engine overheat protection, arm base wear protection, and anti-restart function. The anti-restart function prevents accidental engine startup during operation, protecting the starter motor. Additionally, high/low frequency horns and anti-slip surfaces improve safety on site for operators and nearby personnel.

Easy Maintenance for Reduced Downtime

Designed with serviceability in mind, the HX520L offers easy access to air filters, fuse boxes, and upper structures, making routine inspections and maintenance fast and straightforward. This reduces downtime and ensures the excavator remains productive for longer periods, even in harsh mining conditions.

Ideal Excavator for Mining Operations

With its combination of powerful engine, efficient hydraulics, durable structure, smart technology, and operator comfort, the Hyundai HX520L is perfect for coal overburden removal, iron ore extraction, and limestone mining. Its reliability and performance make it a top choice for mining companies looking for efficiency, safety, and long-term value in their equipment.
