Hyundai HX380L Crawler Mining Excavator

Hyundai HX380L

Crawler Mining Excavator

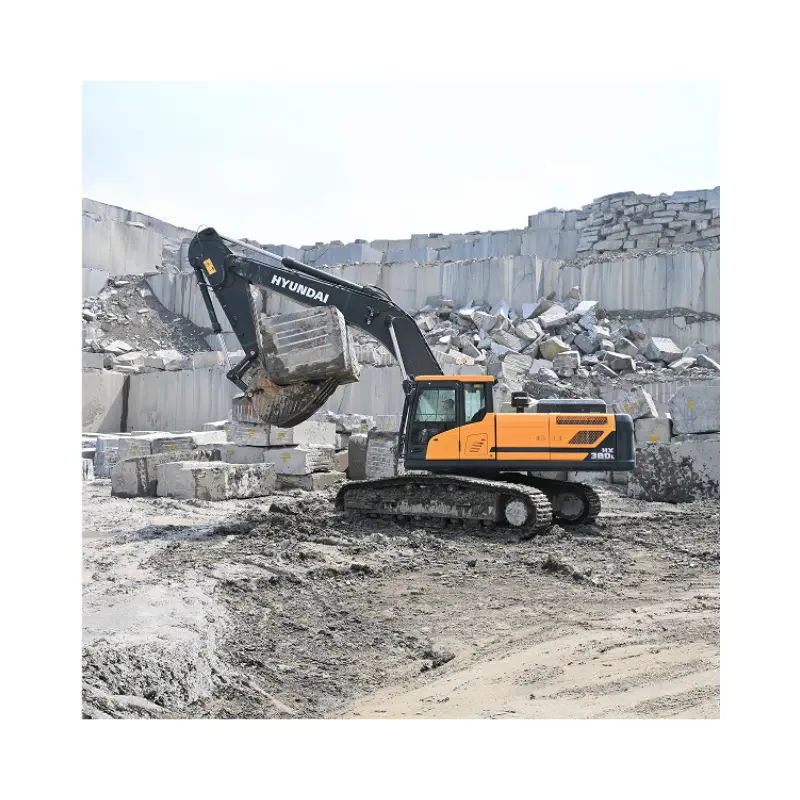

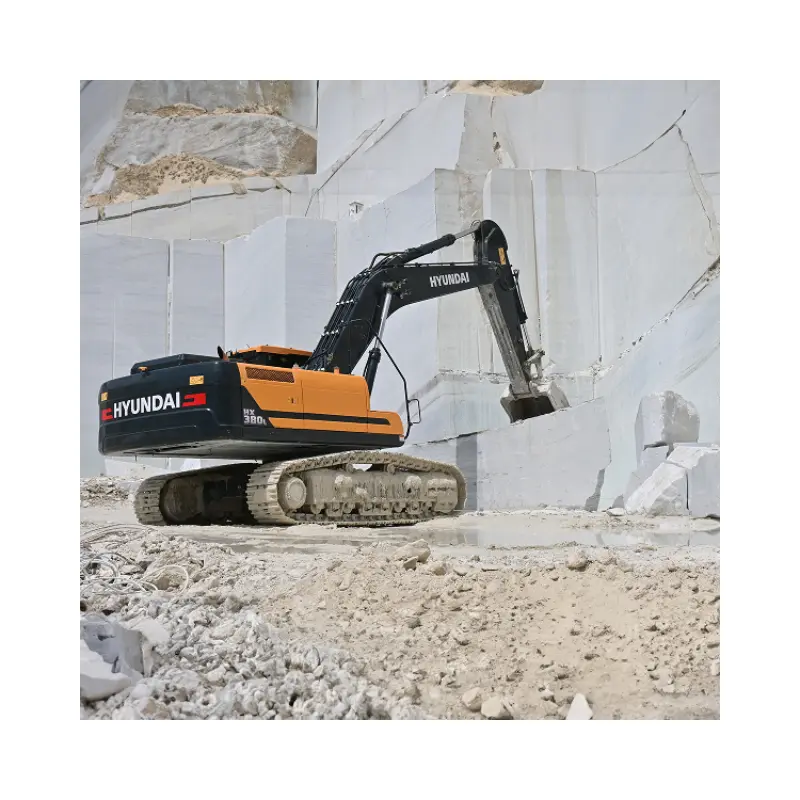

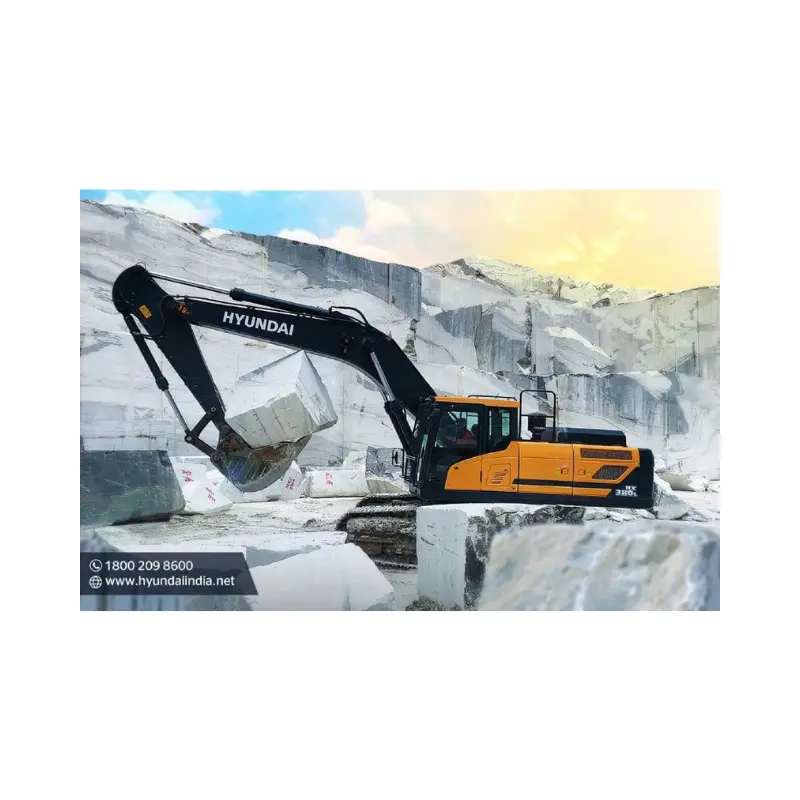

Hyundai HX380L Excavator in Granite Quarry Operations

Built for Extreme Quarry Performance

The Hyundai HX380L Crawler Mining Excavator is a heavy-duty machine designed specifically for granite, marble, and mining applications. With a powerful engine, reinforced structure, and advanced hydraulic control, the HX380L delivers high productivity, durability, and fuel efficiency in the toughest working environments. This excavator is ideal for contractors and quarry operators who demand reliability, strength, and long-term operational value.

Powerful Engine for Maximum Productivity

At the heart of the HX380L is the Hyundai HM 8.3 diesel engine, delivering 260 HP (194 kW) at 2200 rpm. This high-output engine provides strong torque and consistent power, allowing the machine to handle heavy digging, rock breaking, and loading tasks with ease. The engine is optimized for mining conditions, ensuring smooth performance even under continuous high loads while maintaining improved fuel efficiency.

Heavy Operating Weight for Stability and Control

With an operating weight of 37,200 kg, the Hyundai HX380L offers excellent ground stability during demanding operations. This weight helps reduce machine vibration, improves digging accuracy, and allows safer operation when working with large buckets or heavy materials. The robust undercarriage is specially reinforced for quarry work, extending machine life even on rough, abrasive terrain.

Versatile Bucket Options for Different Applications

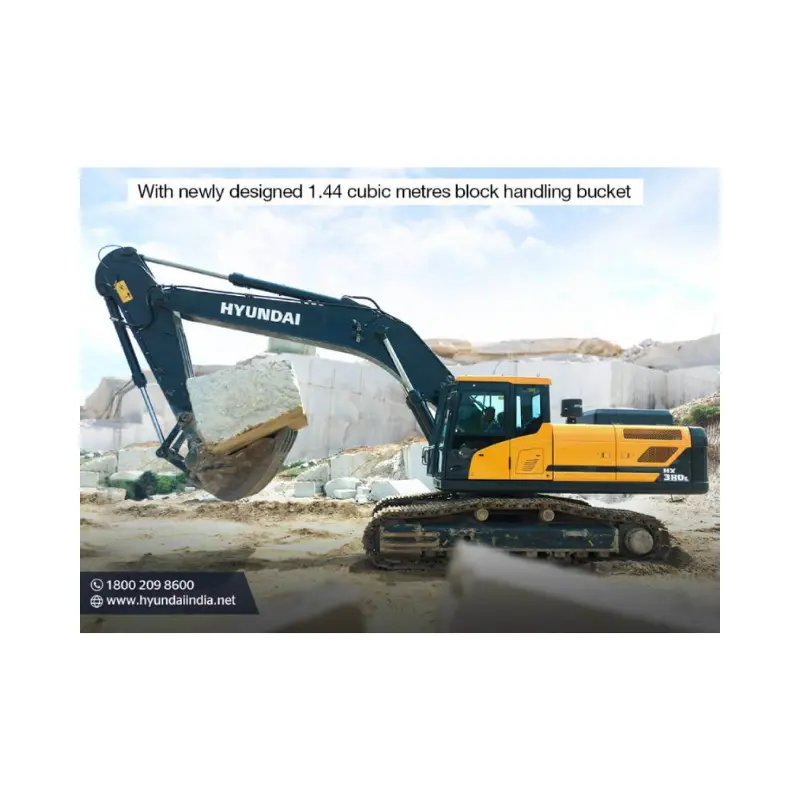

The HX380L supports a wide range of bucket capacities to match different job requirements. Standard General Purpose (GP) buckets are available in 2.1 and 2.3 m³, while Heavy Duty (HD) options range from 1.62 to 1.8 m³. For hard rock applications, a 1.44 m³ Rock HD bucket ensures maximum strength and penetration. This flexibility allows operators to optimize performance whether loading, trenching, or breaking hard materials.

Faster Cycle Times for Higher Output

Designed for productivity, the HX380L delivers up to 5% faster cycle speeds compared to previous models. This means quicker digging, faster loading, and reduced idle time, which directly improves daily output. The 11.2 rpm swing speed supports efficient material handling, making the excavator well-suited for large quarry operations and high-volume production sites.

Advanced Hydraulic System with Attachment Flow Control

The excavator features an advanced hydraulic system with Attachment Flow Control, allowing operators to independently adjust pump flow rates. This ensures optimal performance for different attachments such as breakers, crushers, or buckets. The result is smoother operation, reduced fuel consumption, and better control across multiple applications without compromising machine efficiency.

Superior Cooling System for Continuous Operation

To handle extreme working conditions, the HX380L is equipped with Aluminum Open-Core Coolers. These coolers improve airflow and heat dissipation, preventing overheating during long working hours. The open-core design also makes cleaning and maintenance easier, helping maintain peak performance and reducing downtime in dusty quarry environments.

Excellent Digging Force and Working Range

The HX380L offers impressive digging performance with a bucket digging force of 23,450 kgf and an arm crowd force of 21,100 kgf. It provides a maximum digging reach of 10,290 mm and a maximum digging depth of 6,820 mm, making it suitable for deep excavation, large loading tasks, and efficient material movement in mining and road construction projects.

Designed for Mining, Quarrying, and Construction

This excavator is purpose-built for granite and marble quarries, iron ore mining, and heavy road construction. Its strong tail swing radius of 3,570 mm ensures balanced movement in confined work zones, while travel speeds of 5.0 km/h (high) and 3.1 km/h (low) allow efficient repositioning across large sites.

Award-Winning Design and Proven Reliability

The Hyundai HX380L is recognized for its innovation and performance, winning the Yellow Award 2023 for “Best Design Innovation” by Equipment Times. This award highlights Hyundai’s commitment to engineering excellence, operator comfort, and long-term reliability, making the HX380L a trusted choice across the mining and construction industry.

Why Choose the Hyundai HX380L Excavator

The Hyundai HX380L Crawler Mining Excavator combines power, durability, efficiency, and advanced technology in one reliable machine. With strong digging force, flexible bucket options, efficient hydraulics, and a rugged build, it delivers consistent results in the most demanding environments. For operators seeking high productivity and lower operating costs, the HX380L is a smart long-term investment.
