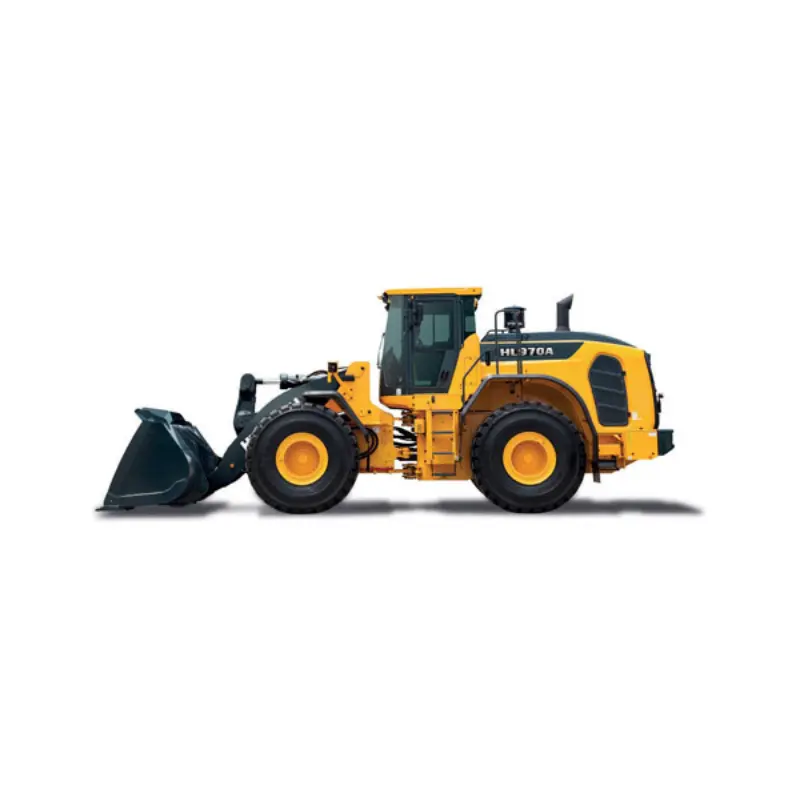

Hyundai HL970A Wheel Loader

Hyundai HL970A

Wheel Loader

The Hyundai HL970A Wheel Loader is a heavy-duty wheel loader manufactured since 2020 for demanding construction, quarrying, aggregate handling, and industrial material handling applications. With an operating weight of 24.2 tons, the HL970A is designed to move large quantities of material efficiently while providing the strength and stability needed for intensive work. Its combination of high bucket capacity, fast travel speed, and practical working dimensions makes it suitable for contractors and businesses that require a reliable large wheel loader.

High-Capacity Material Handling

The Hyundai HL970A has a standard bucket capacity of 4.2 cubic meters, allowing operators to move substantial amounts of material with each loading cycle. The available bucket capacity ranges from 3.7 m³ to 5.2 m³, giving businesses flexibility to select a bucket configuration based on the application. The loader can be used for handling sand, gravel, soil, crushed stone, aggregates, and other bulk materials.

Wide 3.1 Meter Bucket

The HL970A features a 3.1-meter bucket width, providing a large loading area for moving bulk materials. The wide bucket is suitable for high-volume loading operations where productivity and efficient material movement are important. Depending on the bucket configuration, operators can match the machine to different material types and job requirements.

Maximum Discharge Height

The Hyundai HL970A provides a maximum discharge height of 4.33 meters. This height gives the loader the ability to load high-sided trucks and transfer materials into elevated containers or stockpiles. The discharge height is particularly useful in quarrying, aggregate processing, construction, and industrial material handling operations.

40 km/h Travel Speed

The HL970A can reach a maximum travel speed of 40 km/h, providing good mobility between different areas of a job site. This is useful when the loader needs to travel between stockpiles, loading points, trucks, and other work areas. The combination of high bucket capacity and 40 km/h travel speed makes the machine suitable for operations where both loading and site mobility are important.

24.2 Ton Operating Weight

With an operating weight of 24.2 tons, the Hyundai HL970A offers a substantial platform for heavy-duty loading tasks. Its operating weight supports stability when carrying large bucket loads and working with heavy materials. This makes the HL970A suitable for demanding environments where equipment is expected to perform continuously under heavy workloads.

Transport Dimensions

The Hyundai HL970A has a transport length of 8.74 meters, a transport width of 2.975 meters, and a transport height of 3.59 meters. These dimensions are important when planning equipment transportation between different locations. Contractors can use the measurements to select suitable transport equipment and plan site access, storage, and loading areas.

Outside Turning Radius

The HL970A has an outside turning radius of 6.443 meters, providing useful information for planning the machine’s operating area. Adequate space around the loader allows the operator to maneuver when loading trucks, moving around stockpiles, and working alongside other construction equipment. Proper site planning can help make machine movement more efficient.

Flexible Bucket Capacity

A major advantage of the Hyundai HL970A is its wide range of bucket capacity options. The loader supports bucket capacities from 3.7 m³ to 5.2 m³, with a stated capacity of 4.2 m³. Different bucket sizes allow operators to select a configuration according to the material being handled and the required loading performance. This flexibility makes the HL970A suitable for several types of heavy-duty applications.

Hyundai HL970A for Quarrying

The Hyundai HL970A is well suited to quarry and aggregate operations that require frequent loading of heavy materials. Its 4.2 m³ bucket, 3.1-meter bucket width, and 4.33-meter maximum discharge height provide useful capacity for loading trucks and handling stockpiled aggregates. The 24.2-ton operating weight also provides the stability required for demanding quarry work.

Hyundai HL970A for Construction

Construction companies can use the HL970A for moving soil, gravel, sand, crushed stone, and other construction materials. Its high bucket capacity allows operators to move significant quantities with each cycle, while the 40 km/h travel speed supports movement between different areas of large construction sites. The machine can also be used for loading trucks and organizing material stockpiles.

Industrial Material Handling

The HL970A can also be used for industrial material handling applications where large volumes of bulk material need to be moved regularly. Its bucket capacity range allows the machine to be configured for different materials and operating conditions. The loader’s combination of operating weight, bucket width, discharge height, and travel speed makes it suitable for large yards and material processing facilities.

Air Conditioning System

The Hyundai HL970A is equipped with air conditioning, providing a more comfortable cabin environment for operators. This feature is especially valuable when the machine is used for long working shifts in hot climates. Improved cabin comfort can help operators work more comfortably during extended loading and material handling operations.

Diesel Particulate Filter

The HL970A is equipped with a diesel particulate filter (DPF) as part of its emissions-control system. A DPF is designed to capture particulate matter from diesel engine exhaust. This equipment is relevant for modern wheel loaders operating in markets and applications where diesel emissions-control systems are required.

Efficient High-Volume Loading

The Hyundai HL970A is designed for applications where moving large quantities of material is a priority. Its 4.2 m³ bucket capacity allows the loader to handle substantial loads during each cycle, while the available 3.7–5.2 m³ bucket range provides additional configuration flexibility. This makes the machine suitable for operations that require consistent and high-volume material movement.

Practical Working and Transport Dimensions

The HL970A combines large-machine capability with practical transport dimensions. Its 8.74-meter transport length, 2.975-meter transport width, and 3.59-meter transport height provide clear measurements for logistics planning. These specifications are useful for businesses that regularly move equipment between construction sites, quarries, aggregate facilities, and industrial locations.

Hyundai HL970A Key Specifications

The Hyundai HL970A has an operating weight of 24.2 tons and a transport length of 8.74 meters. It features a 4.2 m³ bucket capacity, with bucket options ranging from 3.7 m³ to 5.2 m³. The bucket width is 3.1 meters, and the maximum discharge height is 4.33 meters. The machine has a maximum travel speed of 40 km/h, a transport width of 2.975 meters, and a transport height of 3.59 meters. Its outside turning radius is 6.443 meters, and it is equipped with air conditioning and a diesel particulate filter.

Built for Demanding Applications

The Hyundai HL970A is designed for businesses that need a capable wheel loader for demanding daily operations. Its large bucket capacity, 24.2-ton operating weight, high discharge height, and 40 km/h travel speed provide the specifications needed for heavy material handling. The flexible bucket range also allows customers to select a configuration that matches their specific application.
