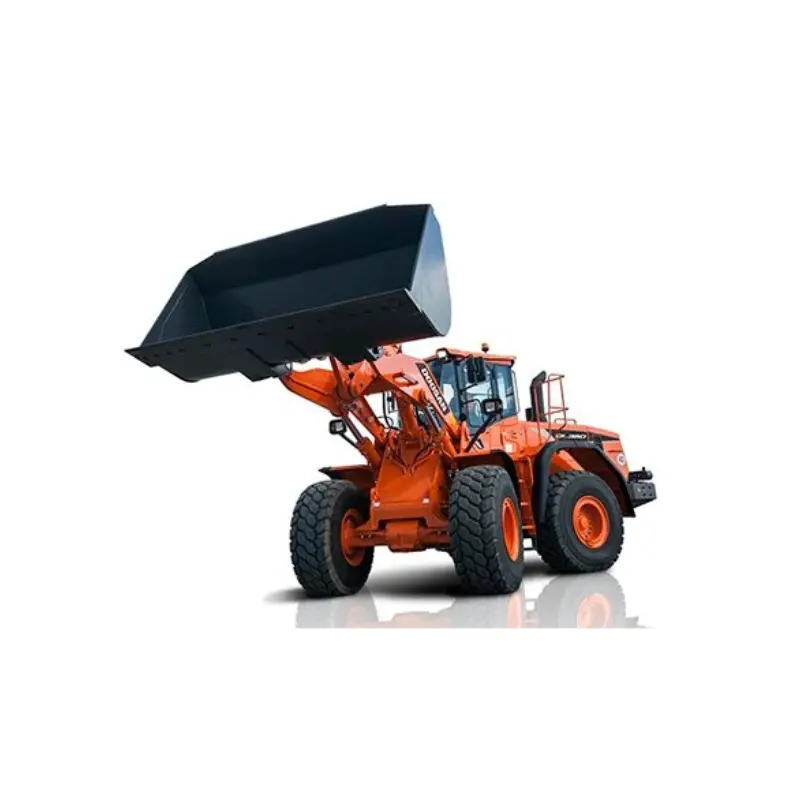

Doosan DL350-5 Wheel Loader

The Doosan DL350-5 Wheel Loader is a powerful and reliable machine designed for demanding material handling, construction, quarrying, and industrial applications. Manufactured by Doosan from 2015 to 2021, this wheel loader combines strong lifting performance, a practical operating design, and high travel speed. With an operating weight of approximately 19.74 tons, the DL350-5 provides the stability and strength required for heavy-duty jobs while remaining suitable for regular transportation and site operations.

3.5 m³ Bucket Capacity

The Doosan DL350-5 is equipped with a 3.5 m³ bucket, giving operators a good balance between material capacity and machine performance. The bucket is approximately 3 meters wide, making it suitable for handling materials such as sand, gravel, soil, aggregates, and other bulk materials. Its bucket capacity allows the machine to move a significant amount of material with each cycle, helping improve productivity on busy jobsites.

Strong Lifting Force

With a maximum lifting force of 164 kN, the DL350-5 is built to handle demanding loading and lifting tasks. This strong hydraulic performance helps the machine work efficiently when moving heavy materials. Whether loading trucks, stockpiling aggregates, or moving materials around a construction site, the DL350-5 provides the force needed for consistent daily operation.

Efficient Material Handling

The Doosan DL350-5 is designed to reduce unnecessary work cycles and improve material handling efficiency. Its 3.5 m³ bucket allows operators to move large quantities of material in fewer passes, while the machine’s powerful lifting system supports fast and controlled loading. This combination makes the DL350-5 a practical choice for construction companies, aggregate operations, recycling facilities, and industrial sites.

High Travel Speed

The DL350-5 can reach a travel speed of up to 37 km/h, allowing operators to move efficiently between working areas. A high travel speed is particularly useful on larger jobsites where the loader needs to travel between stockpiles, loading areas, and material processing locations. This capability can help reduce idle travel time and keep the machine productive throughout the working day.

Stable and Heavy-Duty Design

With an operating weight of 19.74 tons, the Doosan DL350-5 offers a solid foundation for heavy-duty applications. Its weight helps provide stability during loading and lifting operations, especially when handling large amounts of material. The machine’s overall design is focused on durability and dependable performance in demanding working environments.

Practical Dimensions for Jobsite Operation

The Doosan DL350-5 has a transport length of approximately 8.32 meters, while its transport width is around 3 meters. The transport height is approximately 3.47 meters. These dimensions should be considered when planning transportation, storage, and access to the worksite. Checking local transport regulations and site conditions before moving the machine is recommended.

Maximum Discharge Height

The DL350-5 offers a maximum discharge height of approximately 3.04 meters. This provides the clearance needed for many truck-loading and stockpiling applications. The discharge height makes the machine suitable for transferring materials into trucks, containers, hoppers, and piles while maintaining an efficient loading cycle.

Easy Maneuverability

The Doosan DL350-5 has an outside turning radius of approximately 6.61 meters. This gives operators useful maneuverability when working in construction areas, yards, loading zones, and material handling facilities. Good maneuverability can help the operator position the loader more efficiently and reduce unnecessary movements in busy work areas.

Air Conditioning for Operator Comfort

Operator comfort is an important part of maintaining productivity during long working hours. The Doosan DL350-5 includes an air-conditioning system, helping create a more comfortable cabin environment in hot working conditions. This feature is particularly useful for operations in warm climates where the machine may be used for extended periods throughout the day.

Suitable for Multiple Applications

The Doosan DL350-5 Wheel Loader can be used across a wide range of industries and applications. Its combination of a 3.5 m³ bucket, 164 kN lifting force, high travel speed, and nearly 20-ton operating weight makes it suitable for construction, quarrying, aggregate handling, road work, recycling, mining support, and general material handling. Its versatility allows businesses to use one machine for several different loading and transportation tasks.

Designed for Productive Daily Operation

For businesses that depend on wheel loaders every day, productivity and operating efficiency are important considerations. The DL350-5 is designed to perform repeated loading cycles while providing strong lifting capability and useful travel speed. Its specifications make it a practical solution for operations that need to move substantial quantities of material while maintaining steady jobsite productivity.
