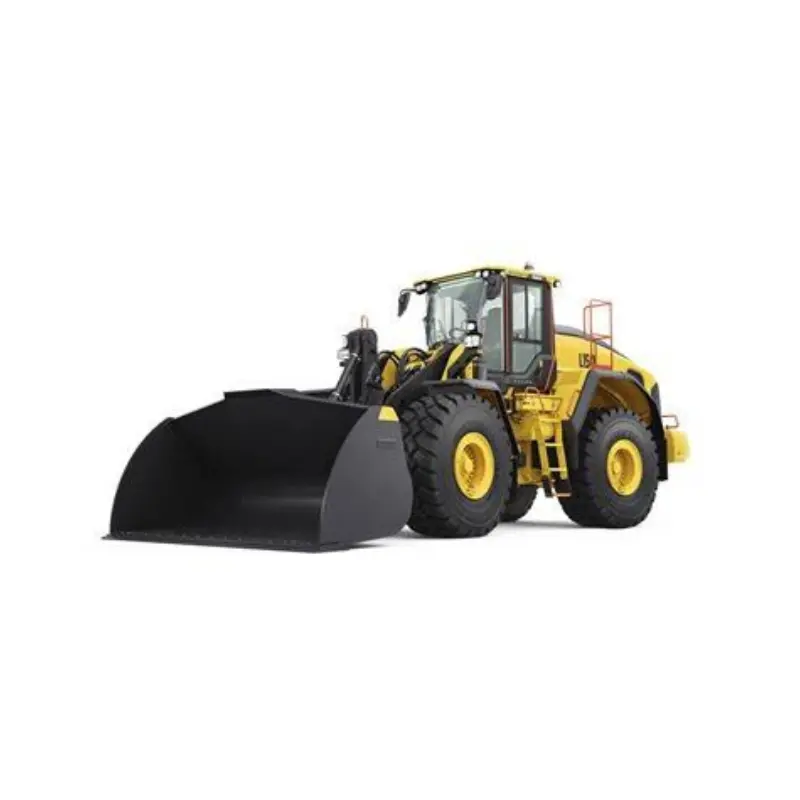

volvo L150 Wheel Loader

volvo L150

Wheel Loader

Heavy-Duty Wheel Loader for High Productivity

The Volvo L150 Wheel Loader is a powerful and versatile machine designed for demanding material-handling operations. It is suitable for construction, quarrying, mining, aggregate handling, infrastructure projects, and other applications where high productivity and reliable performance are essential.

With an operating weight of 24,100 to 25,600 kg, the L150 provides the stability and strength needed to handle heavy loads. Its combination of fast cycle times, optimized attachments, and intelligent Load Assist applications helps operators move material efficiently throughout the working day.

High Productivity for Demanding Applications

The Volvo L150 is designed to improve productivity through faster working cycles and efficient material handling. Faster cycle times allow operators to load, transport, and unload material in less time.

This makes the machine especially useful in operations where large volumes of material must be moved continuously. Improved productivity can help businesses complete projects faster while making better use of machine operating hours.

Large Bucket Capacity

The L150 supports bucket capacities ranging from 3.4 to 14 m³, providing flexibility for different materials and applications.

A larger bucket allows operators to move more material during each loading cycle. The correct bucket configuration can help optimize machine performance according to material density, working conditions, and production requirements.

The L150 can handle materials such as gravel, sand, soil, crushed stone, aggregates, and other bulk materials.

Powerful 201 kN Breakout Force

The Volvo L150 delivers a 201 kN breakout force, providing the strength required to penetrate and lift demanding materials.

Strong breakout force is particularly useful when loading compacted aggregates, rock, gravel, and other dense materials. It helps operators fill the bucket efficiently while maintaining smooth and controlled machine operation.

Volvo D13J Engine

The Volvo L150 is powered by the Volvo D13J engine, designed to provide strong and reliable performance for heavy-duty applications.

The engine produces up to 224 kW of net power according to ECE R120 and 223 kW according to ISO 9249 and SAE J1349 at 1,300 rpm. Maximum torque reaches approximately 1,999 Nm according to ECE R120 and 1,996 Nm according to ISO 9249 and SAE J1349 at 1,000 rpm.

This strong power and torque combination supports demanding loading and transportation tasks.

Intelligent Load Assist Technology

The L150 features Volvo’s intelligent Load Assist suite of applications, designed to help improve machine productivity and support more efficient operation.

Load Assist applications provide useful operational information that can help operators manage loading tasks more effectively. These intelligent tools can support better machine utilization and help businesses improve overall productivity.

Optimized Attachments for More Flexibility

The Volvo L150 can use optimized attachments for different material-handling requirements. Selecting the correct attachment allows the machine to perform a wider range of tasks efficiently.

In addition to standard buckets, the L150 supports log grapples from 1.6 to 3.5 m², making it suitable for timber and logging applications when properly configured.

This versatility allows businesses to adapt the loader to different work environments.

Stable Design for Heavy Loads

The Volvo L150 has a static tipping load at full turn of 16,000 kg, providing the stability required for demanding loading operations.

Its operating weight of 24,100–25,600 kg gives the machine a solid foundation when lifting and transporting heavy materials. Proper configuration and operating practices help maintain stability and safe performance.

Suitable for Quarrying and Mining

The L150 is well suited to quarrying and mining applications where large quantities of heavy material need to be moved efficiently.

It can be used for loading aggregates, crushed rock, gravel, and other bulk materials. Its large bucket capacity and strong breakout force help support high-volume material handling and efficient loading cycles.

Reliable Construction Equipment for Contractors

Construction companies can use the Volvo L150 for earthmoving, site preparation, aggregate handling, truck loading, and infrastructure projects.

Its combination of power, bucket capacity, and intelligent technology makes it suitable for both repetitive loading operations and demanding construction tasks.

Efficient Aggregate Handling

Aggregate plants require dependable machines that can maintain continuous material flow. The L150 can efficiently move sand, gravel, crushed stone, and processed aggregates between stockpiles, processing areas, and transport vehicles.

Its bucket range allows operators to select a configuration that matches the material and required production level.

Designed for Operator Productivity

Efficient equipment operation depends on good machine control and clear operational information. The L150’s intelligent Load Assist applications are designed to support operators during daily loading tasks.

Smooth and predictable machine operation can help operators maintain consistent loading cycles while reducing unnecessary movements and improving overall efficiency.

Durable Performance for Long Working Hours

The Volvo L150 is designed for demanding professional applications where equipment may operate for extended periods.

Its heavy-duty construction and Volvo engineering support reliable performance in challenging environments. Regular maintenance and proper operating procedures are important for maintaining machine efficiency and extending service life.

Tire Options for Different Applications

The Volvo L150 is available with 26.5 R25 and 775/65 R29 tire configurations. The appropriate option depends on the machine setup, operating environment, and application.

Selecting suitable tires can help optimize traction, stability, and overall machine performance on different surfaces.

Lower Cost Through Higher Productivity

Moving more material per cycle can help reduce the number of loading passes required to complete a specific workload. Combined with faster cycle times and intelligent productivity applications, this can improve machine utilization.

For businesses operating in construction, quarrying, mining, and aggregate handling, better productivity can contribute to improved operating efficiency and lower cost per tonne of material moved.

Why Choose the Volvo L150 Wheel Loader?

The Volvo L150 Wheel Loader combines a 3.4–14 m³ bucket capacity, 201 kN breakout force, 24,100–25,600 kg operating weight, and Volvo D13J engine technology in a versatile heavy-duty machine.
